KD2V105FE Dual Cylinder Air Cooled Diesel Engine

Air Cooled Dual Cylinder 4 Stroke Direct Injection Diesel Engine. Features: 1. High Strength Aluminum Alloy Body. 2.Whole Balance of Engine to reduce vibration. 3.Full Oil Line and Splash Lubrication. 4.New Type Oil Radiator to reduce oil temperature, increase the service time. 5. Widely Application: Used for Generator, Water Pump, Construction Machinery, Agriculture Machinery, Tractor and Boat etc.

We much continuously innovate and conduct ourselves as highly trustworthy specialized suppliers

Keyword:

Diesel Engine | Diesel Generator

Category:

Dual Cylinder Diesel Engine

Diesel Engine

NEW PRODUCTS

Feedback

这里是标题一h1占位文字

Product Description

KD2V105FE DIESEL ENGINE
	KD2V105FE Diesel Engine is Air Cooled Dual Cylinder Direct Injection Direct Engine, With the Featuers of Higher Output, Light Weight, Compact Design, Lower Fuel Consumption, Stable Quality and Excellent Performance, widely used for generator, water pump,construction machinery, agriculture machinery etc.
High Power Output. This engine the rated output can reach to 22.8KW 31HP compare the same power engine, the weight is lighter and the volume is smaller
Lower Vibration, with the whole balance of engine to reduce vibration
Low Fuel Consumption, with the new fuel direct injection technology,make the fuel fully consumption.
Longer service time, with the high Strength aluminum Alloy Body, New Structure Oil Radiator and full Oil Line, Plus Splash Lubrication technology.


Technical Specifications:
Model No	KD2V105FE
Type	V-Twin Air Cooled Four Stroke Direct Injection Diesel Engine
BorexStroke	mm	105x88
Displacement	L	1.523
Compression Ratio		18:01
Rated Output	KW	22.8	22.8
Rotation Speed	RPM	3000	3600
Fuel Type		0#(Summer),-10#(Winter),-35#(Chill Cold) Diesel
Fuel Consumption	g/kw.h	≤270	≤270
Lube Type		SAE15W40(CF Grade Above)
Lube Capacity	L	3.3
Lubrication System		Fuel Pressure Lubrication+Splash Lubrication
Over Dimension	LxWxHmm	450x600x540
Net Weight	kgs	74

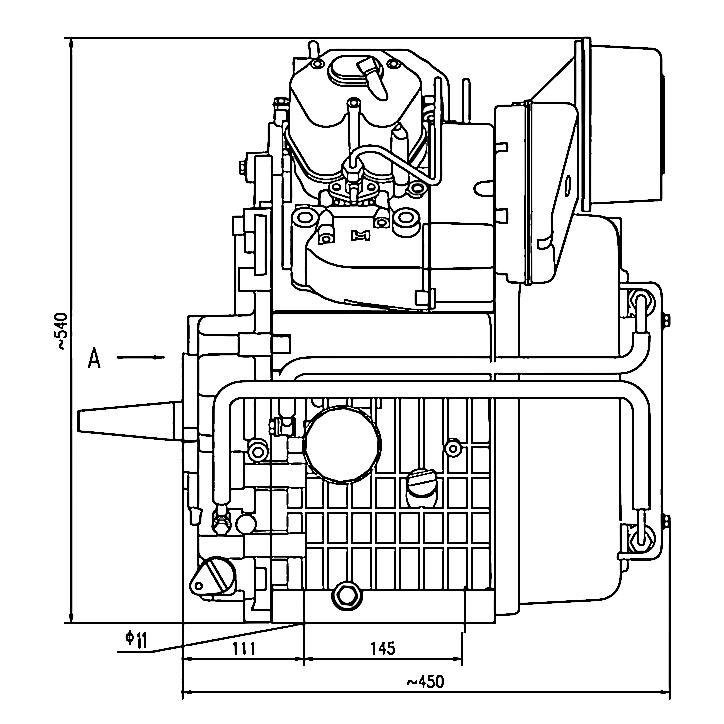

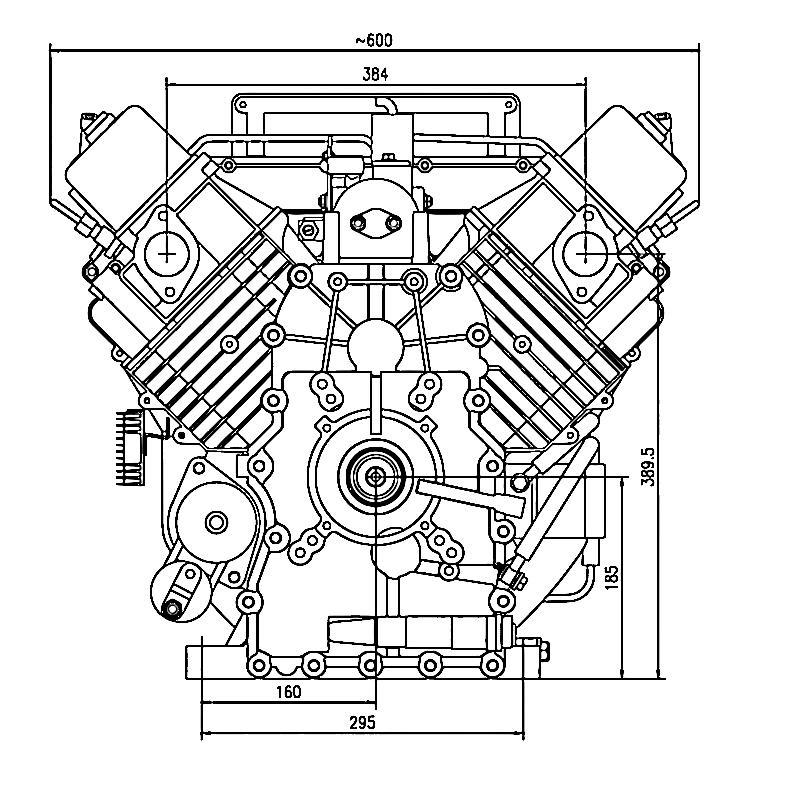

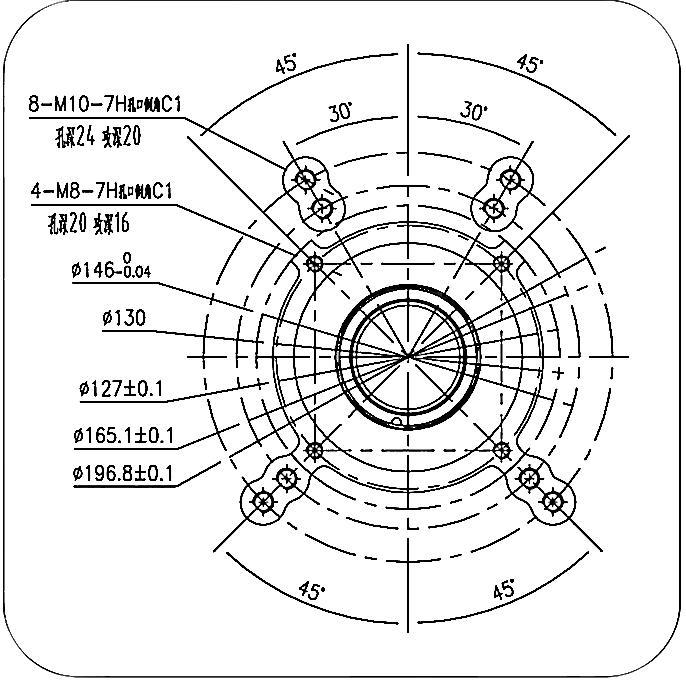

Shaft Drawing:
